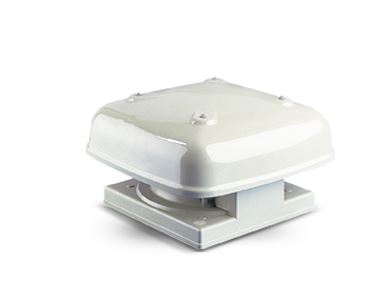

FANTECH MINIVENT SERIES - MV302E
SKU:
Contact Us for Availability & Pricing
Description:
The Minivent Series of axial roof units has been designed for use in a wide range of free intake or ducted exhaust air applications. They can be speed controlled and are available in 6 sizes ranging from 112 to 350mm diameter.
Features:
- Robust, lightweight construction.
- Wide choice of speeds for most sizes.
- All motors are speed controllable.
- Can be used on ducted systems.
- Can be mounted at angles up to 30°.
- Backdraft shutters can be fitted to fans 250 to 350mm diameter (see Special Note).
- Units for supply air applications can be supplied. Refer to Alpha supply range.
Construction:
Cowls are of UV-stabilised injection moulded plastic.
The impellers are of powder coated Galvanised steel.
Motors:
Type - external rotor, squirrel cage induction motors
Electricity supply - 230V, single-phase, 50/60Hz
Bearings - sealed-for-life, ball
Speed-controllable
Motor protection - IP44
Internal Thermal Protection:
MV112 and 132 are impedance protected.
MV202 and above are fitted with thermal contacts as standard.
Testing:
Air flow tests to BS848:Part1, 1980
Noise tests to BS848:Part2, 1985
Special Note:
When backdraft-shutters are used derate the performance by 15-20%.
