WIPCOOL CONDENSATE ATOMIZATION PUMP
SKU:
Contact Us for Availability & Pricing
Create Wealth From Waste
Energy Saving & CO2 Emission
·Stop condensate water’s dripping and free of condensate pipe’s installation
·Increased the heat rejection by water evaporation absorbs a lot of heat
·Enhanced refrigeration effect of the system obviously, saving the energy
Product Description

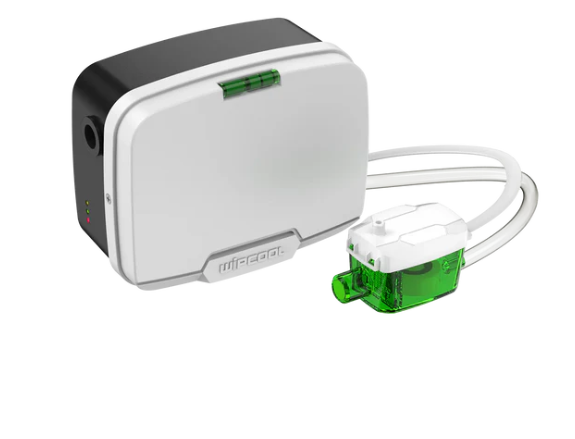

JAVP15J is for atomizing air conditioner condensate drainage. The system consists of only a few elements to reduce the risk of malfunctions and failures. A central apparatus (pump and diaphragm) protected by a white box, a tube to collect the discharge water, a small tube to dispose of the mist and an end nozzle that only need connecting together to solve the condensate drainage problem in a practical, fast and cost-effective way. And Enhanced refrigeration effect of the system at the same time.
Technical Data
| Model: | JAVP15J | Tank Capacity: | 35ml |
| Voltage: | 230V~/50-60Hz 100-120V~/50-60Hz | Mini Splits up to: | 30,000btu/hr |
| Flow Rate(Max.): | 15L/h(2 nozzles) | Sound Level at 1m: | 55dB(A) |
| Pressure: | 7bar | Power: | 35W |
| Suction lift(Max.) | 1.5m(5ft) | Ambient Temp: | 0℃-50℃ |
