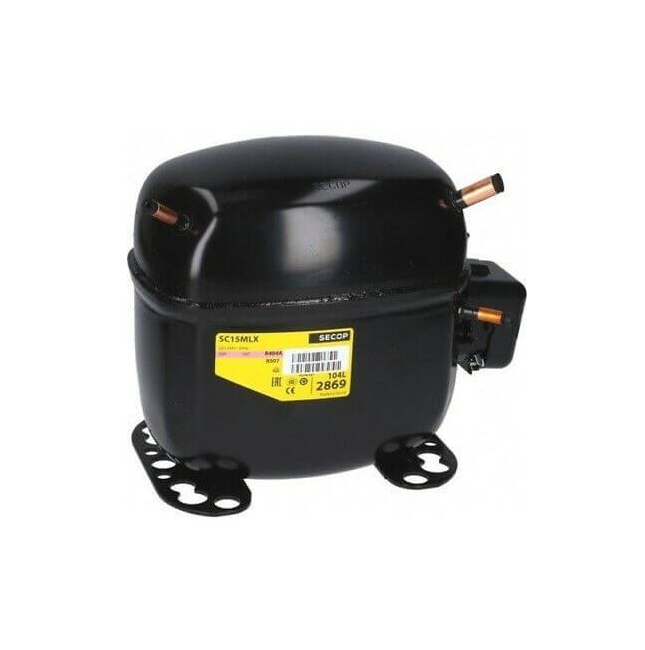

SKOPE SECORP SC15MLX R404A MBP R404A

Item Description:

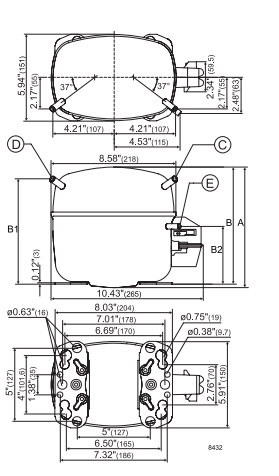

Dimensions:

Height (inches) -  A: 8.62

                           B: 8.39

                          B1: 7.60

                         B2: 4.33

Suction Connector: location, I.D. in. | angle - C 0.378-0.385 | 37°

                              material | comment - Copper | Rubber plug

Process connector: location, I.D. in. | angle - D 0.252-0.259 | 37°

                             material | comment - Copper | Rubber plug

Discharge connector: location, I.D. in. | angle - E 0.252-0.259 | 37°

                             material | comment - Copper | Rubber plug

https://www.secop.com/fileadmin/user_upload/SEPS/datasheets/sc15mlx_104l1805_r404a-r507_115v_60hz_01-2020_desd462r322.pdf
